Implements:

Buckets
High Tip Buckets
Forklift device (detachable)
Manure fork
Silage grabber
Round-bale handler
Stone fork
Big bag lifter


Buckets:

Click the bucket type to see more pictures

Bucket type
Width
Volume / Thickness
Measurements
1,4 m
500 L, 5 mm
750 x 800 mm
1,8 m
650 L, 5 mm
750 x 800 mm
2,2 m
1000 L, 5 mm
750 x 800 mm
1,25 m
450 L, 5 mm
800 x 950 mm
1,50 m
600 L, 5 mm
800 x 950 mm
1,75 m
800 L, 5 mm
800 x 950 mm
2,10 m
1100 L, 5 mm
800 x 950 mm
2,10 m
1100 L, 5 mm
800 x 950 mm
2,25 m
1200 L, 5 mm
800 x 950 mm
2,25 m
1500 L, 5 mm
980 x 950 mm
2,50 m
1400 L, 5 mm
800 x 950 mm
2,50 m
1800 L, 5/8 mm
980 x 950 mm

up


High Tip Bucket:

  • When need to lift heigh, high tip bucket is right decision because it increase lift heights.
  • High tip buckets are used to loading light materials for example wood chips or snow
  • Cylinders are enclosed to buckets sides.
  • Also available a net to the upper edge of bucket.

Bucket type
Width
Volume / Thickness
High Tip Bucket
2,2 m
1100 L, 5 mm
High Tip Bucket
2,5 m
2500 L, 5 mm
up

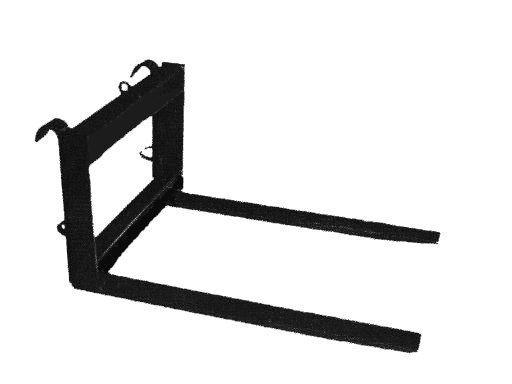

Forklift device (detachable):

Lenght of fork
Frame
Lifting capacity
Forged forklift truck forks
105 cm
1,2 m
1,3 tn
Forged forklift truck forks
105 cm
1,4 m
1,5 tn
Forged forklift truck forks
120 cm
1,4 m
2,5 tn
up

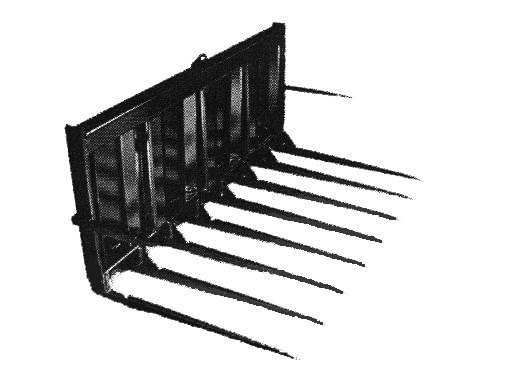

Manure fork:

Width
Spikes
Forks in number / lenght
1,4 m
forged spikes
8 in number / 90 cm
2 spikes at side
1,7 m
forged spikes
10 in number / 90 cm
2 spikes at side
up

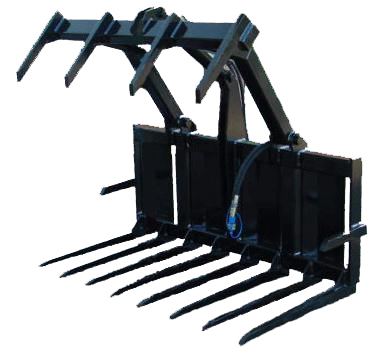

Silage grabber:

Width
Spikes
Forks in number / lenght
Upper grab
1,4 m
Forged spikes
8 in number / 90 cm
hydraulic upper grab with 4 spikes
1,7 m
Forged spikes
10 in number / 90 cm
hydraulic upper grab with 5 spikes
up

Round-bale handler :

* 1,2 - 1,8 m , max opening 2,1 m, hydraulic, with 2 cylinders

* 1,2 - 1,4 m , max opening 1,8 m, hydraulic

up


Stone fork:

Width
Forks in number
1,4 m
17 pc
1,7 m
21 pc


up


Bulk sack lifter:


up
